Remove spring strut holder
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to RELEASING THE BRAKE HOSE AND CABLE .
- Refer to DETACHING THE UPPER WISHBONE FROM THE SWIVEL BEARING .
- Refer to SECURING THE SWIVEL BEARING .
- Loosen nut (1).
- Punch in the swivel bearing (2) at the front towards the inner.
- Pull out screw (3).
Marking the installation position of the spring strut holder
- Mark the installation position of the spring strut holder (1) for the spring strut (2) before the removal.
- A color coding (3) must be made in the edge extension (4).
- Release the screw (1) from the spring strut holder (2).

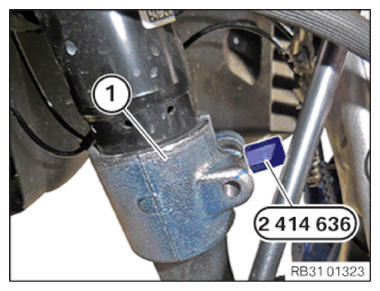

- Expand spring strut holder (1) with special tool 2 414 636.
- Release the swivel bearing from the attachment on the top wishbone.

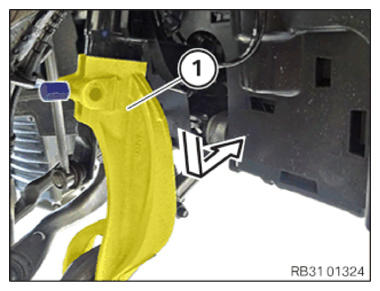

- Guide the spring strut holder (1) down and out in the arrow direction and remove it.
Secure the swivel bearing
- Fasten the swivel bearing (1) by using the special tool 2 413 317
to protect it from tilting outwards.
Swivel bearing (1) must not hang down from the brake hose.
