Raising the front subframe

NOTE: RISK OF DAMAGE
Failure to comply with the specification. Component damage .

All specifications for installation and removal must be observed.

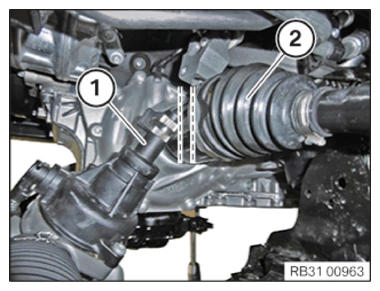

When lifting the front subframe, ensure sufficient distance between the steering gear (1) and the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Lower the front subframe (1) with the mobile lifting table and on the side member (2).

G14391220

Courtesy of BMW OF NORTH AMERICA, INC.
