Adjust lock striker
Prerequisite
The screws on lock striker are loosened so far that the lock striker can still be shifted.
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .

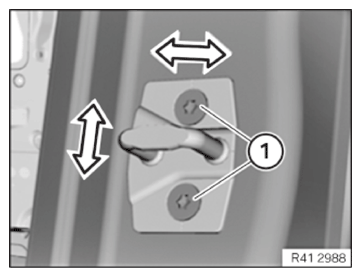

- Adjust the lock striker's height such that the door lock does not bump or rub against anything.
- Move lock striker sideways in order to adjust the gap dimension between the door and the adjoining body part.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Lock striker | ||
|---|---|---|
| screw | Tightening torque | 21 Nm |
