Adjust Front Door

Preliminary work

Further information is available.

Check

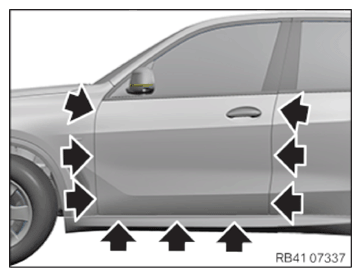

• Check gap dimension between door and the adjacent body parts.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATIONS



  Gap dimension side panel to front door
  1 Side panel; 2 front door	a  3.8+1-1 mm b  0.5+0.8-0.8 mm
  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATIONS



  Gap dimension front panel door to door sill trim
  1 front door; 2 door sill trim panel	a  4.2+1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATIONS



  Gap dimension front door to rear door
  1 front door; 2 rear door	a  4.5+1-1 mm b  0+1.5-0.3 mm
  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust door
• Open door.

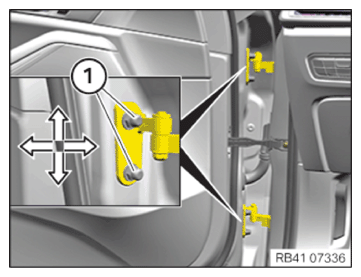

• Loosen spherical nuts (1) until the door can be moved.
• Adjust height of door.
• Adjust width of the door.
• Tighten spherical nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front door to door hinge
  Nut and domed ball	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust lock striker

  Further information is available.

  Prerequisite

  The screws on lock striker are loosened so far that the lock striker can still be shifted.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see BODY DIMENSIONS .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the lock striker's height such that the door lock does not bump or rub against anything.
• Move lock striker sideways in order to adjust the gap dimension between the door and the adjoining body part.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Lock striker
  screw
  	Tightening torque  21 Nm

Follow-up work
