Removing Tail Panel Outer Section

NOTE: Perform the steps on the left and right side.

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension a = about 20 mm below the component edge of the tail light mount.

NOTE: Install the new part overlapping in area above the separating cut.

Courtesy of BMW OF NORTH AMERICA, INC.

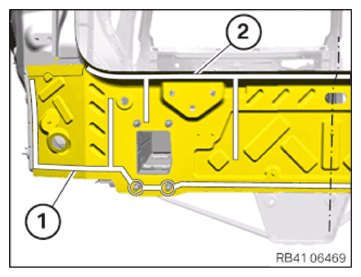

Release the welded connections in the areas (1) and (2) and remove the tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.
