Preparing New Part
Further information is available.
NOTE:
RISK OF DAMAGE
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
- Only shift trunk lid slowly hand force.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see 4100... BMW/MINI BONDING INSTRUCTIONS (ALL X5 MODELS, 2019-2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see 4100... BMW/MINI BONDING INSTRUCTIONS (ALL X5 MODELS, 2019-2022) .
NOTE:
Perform the steps on the left and right side.

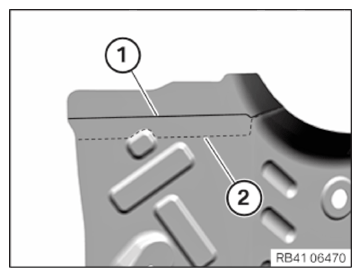

- Mark the separating cut (1) on the new part to reflect the separating cut on the vehicle + approx. 15 - 20 mm material allowance and carry out the cut.
(2) = Separating cut on the vehicle
- Adjust and secure the tail cowling in combination with the trunk lid and tail lights.
- In the areas (1) and (2), set bores with 0 4.2 mm for blind rivets.
Area Number 1 11 2 2 - Remove new part and deburr bores.
