Preparing New Part
Further information is available.
- Carry out the severance cuts on the new parts according to the severance cut on the vehicle.
- Remove unnecessary components from new part.

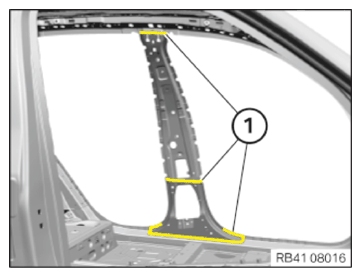

- Adjust the new parts and prepare for joining by welding in the areas (1).

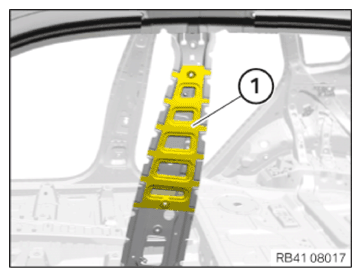

- Adjust new part (1) and prepare for joining by welding.
- Adjust the new part using an alignment bracket or a universal fixture and secure it.

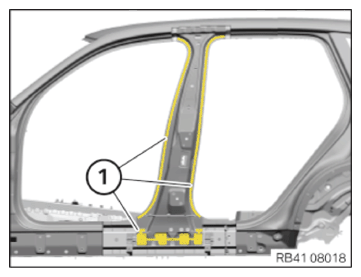

- Prepare new part in the areas (1) for joining by welding.

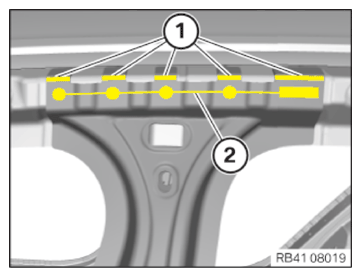

- Prepare new part in the areas (1) and (2) for joining by welding.
- Mark out and make separating cuts on the new B-pillar outer skin in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see 4100... WELDING IN REINFORCEMENT PLATE (SHEET STEEL) (ALL X5 MODELS, 2019-2022) . - Prepare reinforcement plates for separating cuts. Prepare the separating cuts and reinforcement plates for joining by welding.

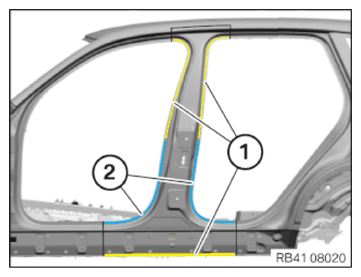

- Adjust new part and prepare for joining by welding in areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see 4100... SPOT-WELD BONDING STEEL COMPONENTS (ALL X5 MODELS, 2019-2022) . - In the areas (2), observe the procedure for replacing spot-welded adhesive joints for series production.
