Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see 4100... REPAIR TECHNIQUES, REPAIR STAGE 3 (ALL X5 MODELS, 2019-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Further information is available.

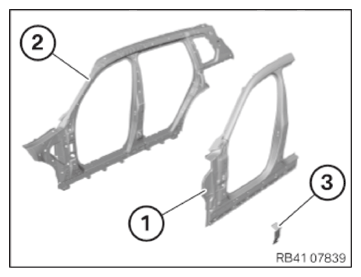

- Supply the following new parts:
A-pillar with door sill (1)
Side frame, center (2)
Reinforcement plate, door sill (3)
Shaped part, A-pillar, bottom inner
Shaped part A-pillar, bottom, outer
NOTE: TECHNICAL INFORMATION
For additional information see 4100... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (ALL X5 MODELS, 2019-2022) . - Supply the following consumables:
Material Quantity Adhesive K5 (50 ml) 1 Blind rivet N3 10 Coarse thread bolt 5 Cleaning agent R1 1 Cleaning agent R2 1 Cavity protection wax remover 1 Sealing compound D1 1
