Install A-Pillar Reinforcement

Further information is available.

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

NOTE: TECHNICAL INFORMATION
For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .

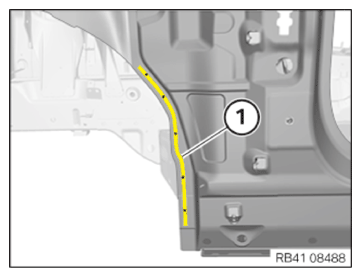

Apply sealant D1 to cavity sealing (1). Install cavity sealing (1) in the new part.
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.

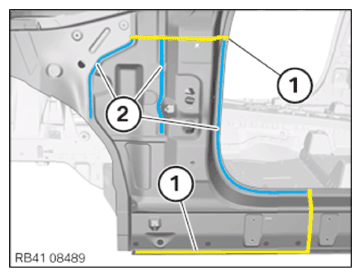

Apply sealant (D1) on the cavity sealing in the area of the A-pillar.
Install the new part with an alignment bracket or a universal fixture.

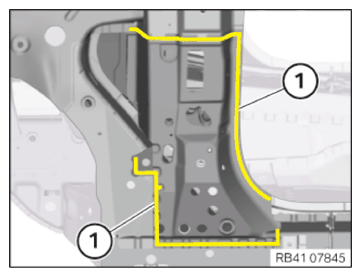

Weld new part in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

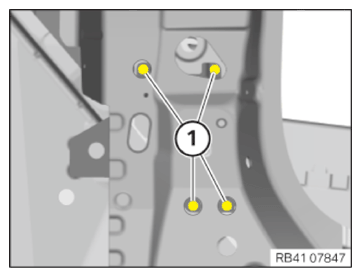

Weld the new part in the area (1) according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new part in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

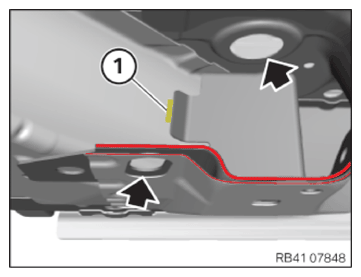

Weld the new part in the area (1) with a 20 mm long MAG weld seam.
Create MAG weld seam using the openings (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .

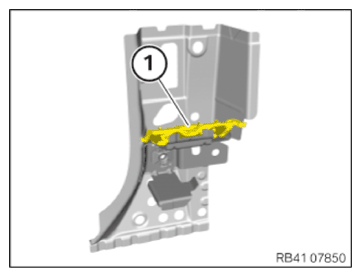

Apply sealant D1 to the new cavity sealing (1). Install cavity sealing.
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.

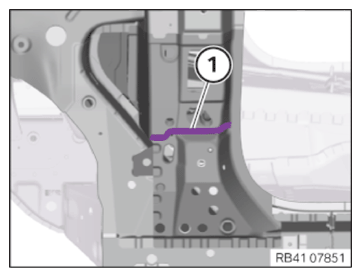

Pre-clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R2.
CONSUMABLE SPECIFICATIONS

Cleaning agent R2 500 ml 83190417324
Clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R1.
CONSUMABLE SPECIFICATIONS

Cleaning agent R1 100 ml, Bottle 83192211217

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .
Apply sealant D1 to the cavity sealings (2).
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985
Apply adhesive K5 to bonding surface (1).
ADHESIVE SPECIFICATIONS

Body adhesive K5 50 ml 83192158654
Install and fasten new part together with the reinforcement plate.

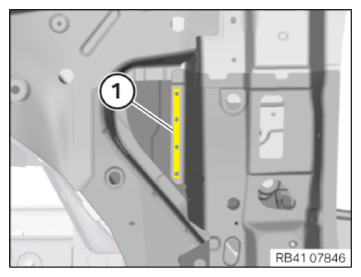

Rivet the new part in area (1) with blind rivets N3.

CONSUMABLE SPECIFICATIONS

Blind rivet N3	83190301421
Ø 4 mm; clamping area 1-3 mm

Courtesy of BMW OF NORTH AMERICA, INC.

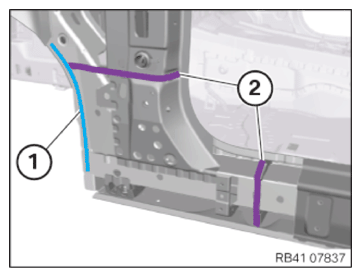

Weld the new part and reinforcement plates in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
