Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see 4100... REPAIR TECHNIQUES, REPAIR STAGE 2 (ALL X5 MODELS, 2019-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Further information is available.

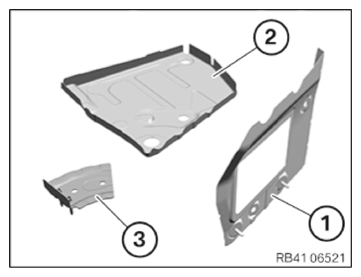

- Prepare the following new parts (see applicable BMW Parts Catalog [EPC]):
Rear wheel arch extension (1)
Luggage compartment floor, side (2)
connection (3)
NOTE: TECHNICAL INFORMATION
For additional information see 4100... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (ALL X5 MODELS, 2019-2022) . - Supply the following consumables:
Material Quantity Adhesive K5 (50 ml) 1 Blind rivet N3 20 Blind rivet N6 5 Coarse thread bolt 10 EMC screw 2 Cleaning agent R1 1 Cleaning agent R2 1 Sealant D1 Cavity sealing wax remover
