Removing The Left Luggage Compartment Floor

Further information is available.

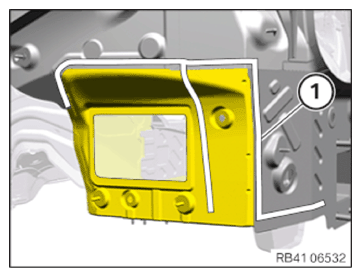

• Open welded connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

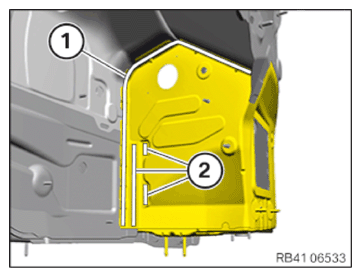

• Open welded connections in areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

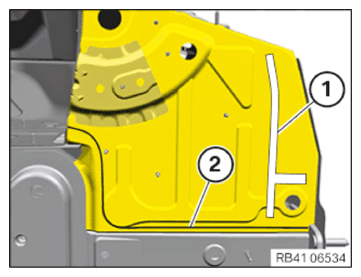

• Open welded connections in area (1).
• Perform the coarse separating cut (2) as shown and remove the luggage compartment floor.

  Courtesy of BMW OF NORTH AMERICA, INC.

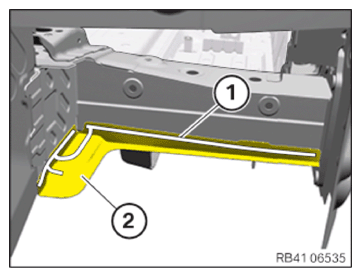

• Release the welded connections in the area (1) and remove the section (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
