Preparing New Part

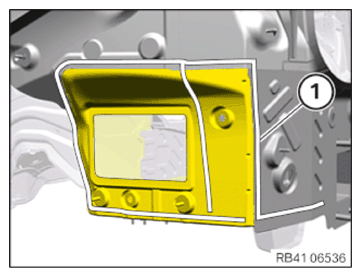

Prepare the new parts in area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust new parts to fit and secure.

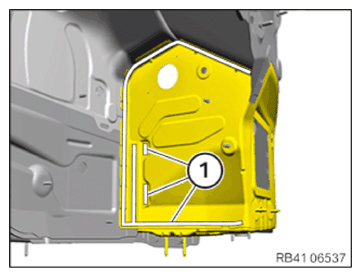

Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

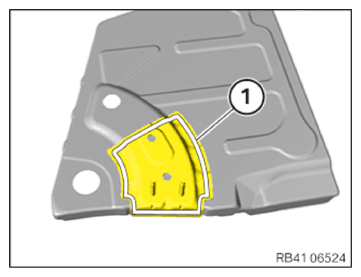

Prepare the areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

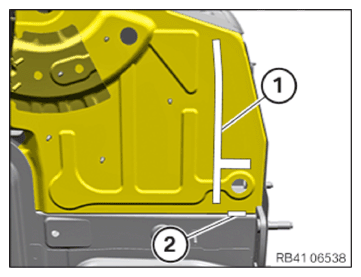

Prepare for joining by welding in areas (1) and (2).
In the area (2), prepare a 15 mm long MAG weld seam.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Shown without side panel.

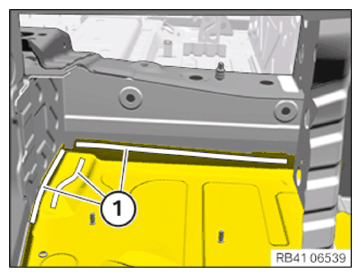

Prepare the areas (1) for joining by welding.
Remove new component.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolts and threaded weld bolts, surface steel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Take the number and position from the component to be replaced or the installed parts.
Replace the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt (1), threaded weld bolt (2)
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
