Preparing New Part

Further information is available.

• Carry out the severance cuts on the new parts according to the severance cut on the vehicle.
  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00... Welding in reinforcement plates (sheet steel)
• Prepare reinforcement plates at severance cuts.

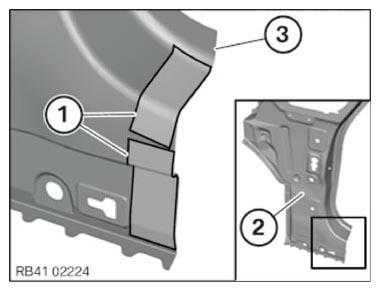

• Cut the reinforcement plate (1) (two parts) out of the new part trim (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

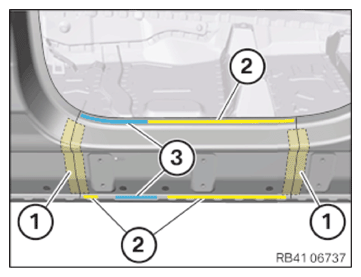

• Adjust the reinforcement plates (1) and new part.
• Prepare for joining by welding in areas (2) and (3).
  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... SPOT-WELD BONDING STEEL COMPONENTS (ALL X5 MODELS, 2019-2022) .
• In areas (3), observe the procedure for replacing spot-welded adhesive joints for the standard production.

  Courtesy of BMW OF NORTH AMERICA, INC.
