Installing the auxiliary turn signal lamp on the outside rearview mirror

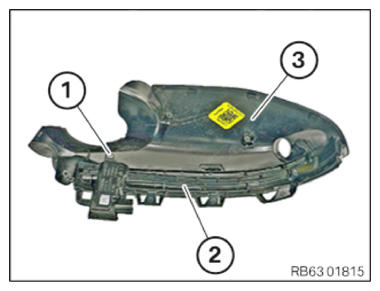

• Add auxiliary turn signal lamps (2) to the lower housing section (3).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Auxiliary turn signal lamp to cover cap
  Oval-head screw	tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

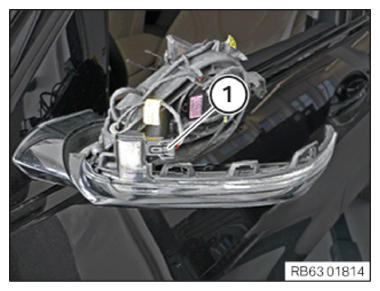

• Add lower housing section with auxiliary turn signal lamps to the external mirror.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the top view camera (3).
• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Top view camera to vehicle exterior mirror
  Screw	tightening torque	0.85 Nm

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

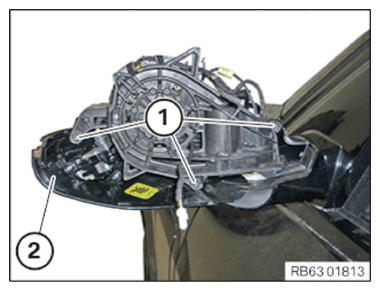

• Correctly position the lower housing section on the external mirror.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RETAINING RING ON THE OUTSIDE REARVIEW MIRROR .
• Refer to INSTALLING THE EXTERIOR MIRROR ADJUSTMENT DRIVE .
• Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
• Refer to INSTALLING THE MIRROR GLASS .
