Remounting the adapter for the trim of the instrument cluster

Removing the adapter for the trim of the instrument cluster

Courtesy of BMW OF NORTH AMERICA, INC.

• Release (1) clips.
• Remove the adapter (2) for the trim from the instrument cluster (3).

Installing the adapter for the trim of the instrument cluster

Check

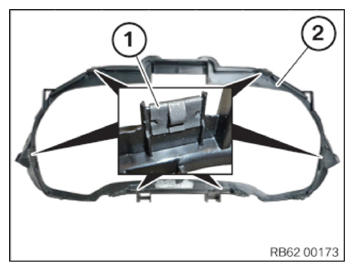

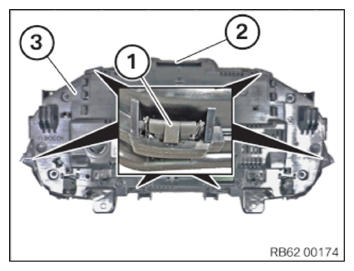

• Check the trim detailing (1) and the guides on the adapter (2) for the trim for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

>> The trim detailing (1) or the guides are damaged.

Measure

• Replace the adapter (2) for the trim.

  Parts:  Adapter

• Position the adapter (2) for the trim on the instrument cluster (3) and clip it in.

  The trim detailing (1) must snap-in audibly.
