Installing the bottom trunk lid lock switch

Prerequisite

Trunk lid is open.

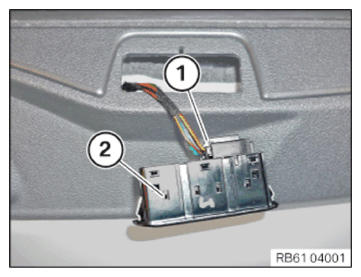

• Position the trunk lid lock switch (2) and connect with the connector (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

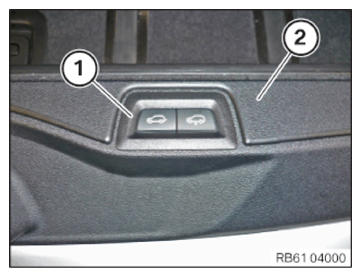

• Position the trunk lid lock switch (1) and install in the bottom of the trunk lid (2).

Courtesy of BMW OF NORTH AMERICA, INC.
