Removing trim panels on the operating facility in the center console

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces  .
Plastic wedges can damage high-quality surfaces  .

• Protect surfaces from damage.

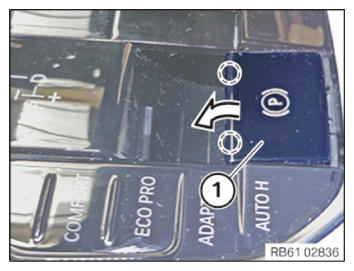

• Press trim for the parking brake button (1) in the arrow direction, forward and downward.

NOTE: The trim of the parking brake button releases by forcefully pressing it out of the detents.

Courtesy of BMW OF NORTH AMERICA, INC.

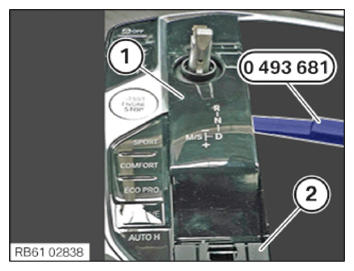

• Lever out the trim (2) with the special tool 0 493 681 (64 1 020) .

  Courtesy of BMW OF NORTH AMERICA, INC.

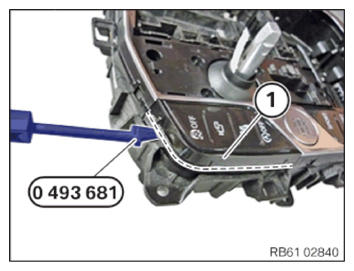

• Lever out the trim (1) with the special tool 0 493 681 (64 1 020) .

  Courtesy of BMW OF NORTH AMERICA, INC.

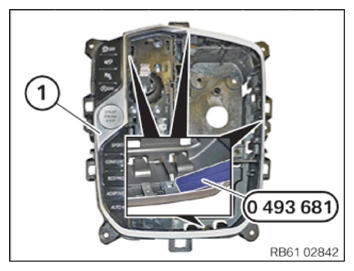

• Lever out the trim (1) with special tool 0 493 681 (64 1 020) at the marked positions.

Courtesy of BMW OF NORTH AMERICA, INC.
