Installing wheel arch trim, front right

Installing front wheel arch trim

• Only for G05/F95:

  Check

• Check the clips (2) for damage and replace if necessary.

  Observe the sealing ring, it must not be missing or damaged.

• Check detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) of the wheel arch trim are damaged.

Measure

• Replace wheel arch trim.

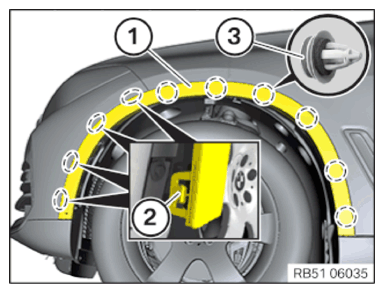

• Install wheel arch trim (1) and lock on the clips (3) and the detentes (2).

Courtesy of BMW OF NORTH AMERICA, INC.
