Install the left and right bonnet lock

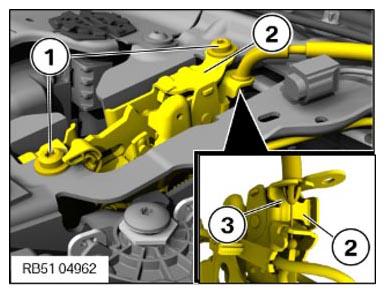

Installing the left hood lock

• Attach cable linkage (3) to the hood lock (2).
• Feed in the hood lock (2).
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Bonnet lock
  Oval-head screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

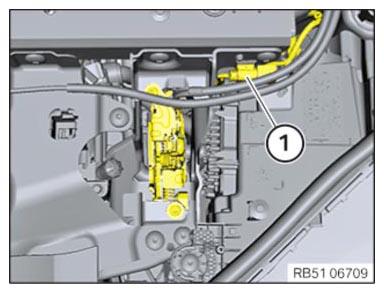

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

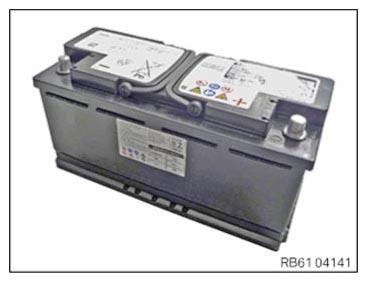

Disconnecting all battery ground leads

• Refer to CONNECTING ALL BATTERY GROUND LEADS .

Courtesy of BMW OF NORTH AMERICA, INC.

Activating the 48 V electrical system

Prerequisite

Ignition is switched off.

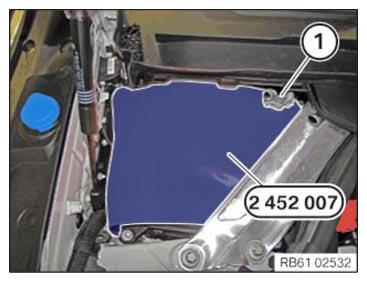

• Raise the battery ground cable (1).
• Remove special tool 2 452 007  .

  Courtesy of BMW OF NORTH AMERICA, INC.

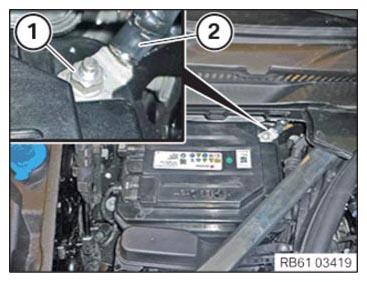

• Release the negative battery cable (2) of the 48-V battery from the attachment.
• Position the negative battery cable (2) of the 48-V battery on the negative battery terminal.
• Tighten the nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Negative battery cable to 48-V battery
  Nut M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

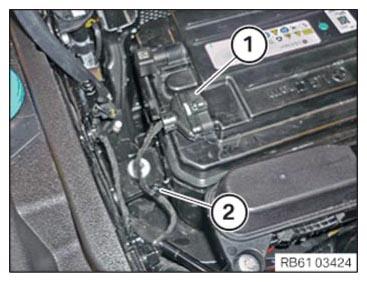

• Connect the connector (1) of the CAN bus and lock it.
• Clip in the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

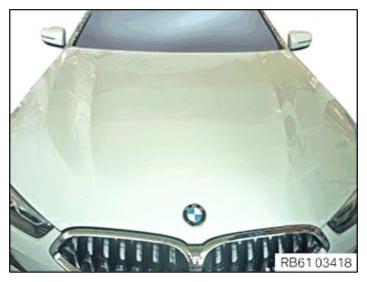

• Activate the 48 V electrical system by closing the hood.

  The activation takes place automatically.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the right hood lock

• Attach cable linkage (3) to the hood lock (2).
• Feed in the hood lock (2).
• Replace screws (1).

  Parts:  screw

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
