Install reinforcement strut

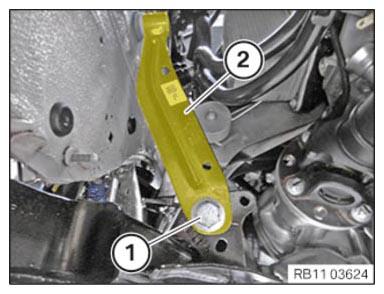

- Position the reinforcement strut (2).
- Replace the screw (1).
Parts: screw
- Screw in the screw (1) by hand force.NOTE: Do not yet tighten the screw (1).
- Replace the screw (1).
Parts: screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Reinforcement strut to engine mount M12
Replace screw.Tightening torque 108 Nm - Tighten the screw (1) at the reinforcement strut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Reinforcement strut to front subframe | ||
| M12 Replace screw. |
Tightening torque | 108 Nm |
