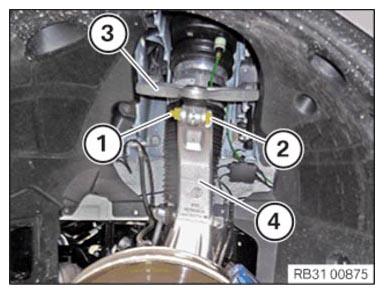

Fastening the wishbone to the top of the swivel bearing
- Position journal of upper wishbone (3) in bore of swivel bearing (4).
- Replace screw (2) and the nut (1).
Parts: Bolt and nut
- Insert screw (2).
- Tighten the nut (1).TIGHTENING TORQUE SPECIFICATIONS
Upper wishbone to swivel bearing M10
Replace screw and nut.Tightening torque 56 Nm - Remove the special tool for attaching the swivel bearing.
