Remove luggage compartment floor covering

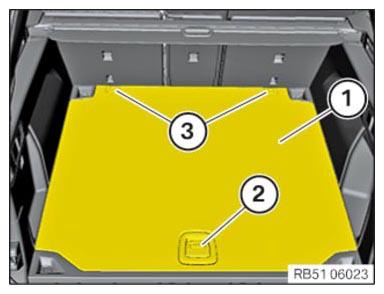

• Unlock the luggage compartment floor covering (1) at the handle (2), slightly lift and remove towards the rear from the detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the luggage compartment floor covering (electrical roller cover for luggage compartment)

Prerequisite

The electrical roller cover for luggage compartment must be up. Run it up If applicable.

• Lift the luggage compartment floor covering.
  NOTE: Perform the steps on the right and left side.

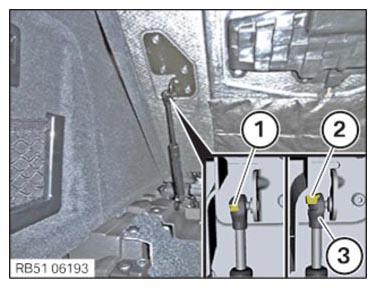

• Push the clamp (1) into removal position (2).
• Detach the gas pressure spring (3) from the ball head.

  Courtesy of BMW OF NORTH AMERICA, INC.

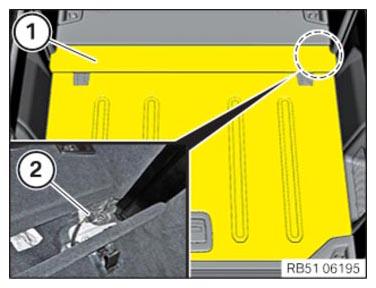

• Fold up the lid (1) and unlock and disconnect the plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

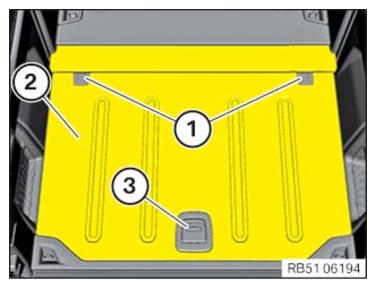

• Open the covers (1) and release the screws below.
• Unlock the luggage compartment floor covering (2) at the handle (3), lift it slightly and guide it to the rear and out of the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the luggage compartment floor covering (with 3rd row of seats)

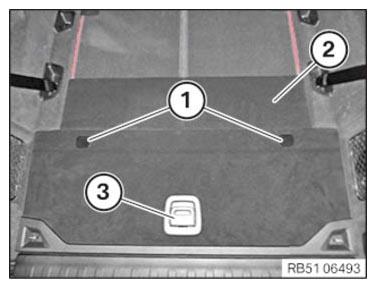

• Remove covers (1) and unscrew screws below.
• Unlock the luggage compartment floor covering (2) at the handle (3), lift it slightly and guide it to the rear and out of the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
