Installing the strut brace on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the strut brace
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

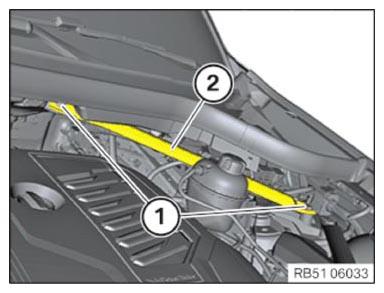

- Install the strut brace (2).
- Replace screws (1).
Parts: screw
- Tighten the bolts (1) with the special tool 0 490 504 (00 9 120) .
TIGHTENING TORQUE SPECIFICATIONS
| Strut brace | ||
| M10x55 screw Replace screws |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
