Install the cover of the steering assembly on the left and right
NOTE:
Perform the steps on the right and left side.
Install the cover of the steering assembly
NOTE:

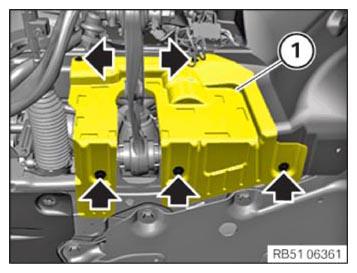

To provide a better overview: Schematic diagram with partially hidden components.
- Insert the cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Cover, steering unit | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
