Remove the strut brace at the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing suspension strut brace
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

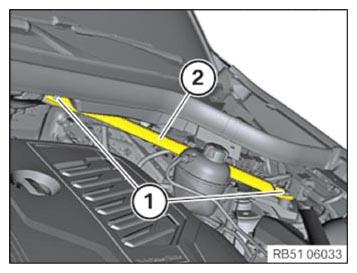

- Loosen screws (1).
- Take off the strut brace (2) in an upward direction.
