Position the mobile table lift

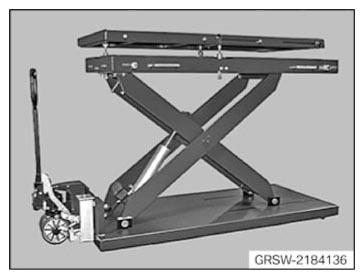

Position mobile lifting table centrally 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
Position adjustable mount (30) with adapter (60) at the front of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Position adjustable mount (30) with adapter (50) at the rear of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
