If installed: Remove the auxiliary heater (additional work AW no: 31 11 905)
Remove the front section of the front wheel arch cover
NOTE:

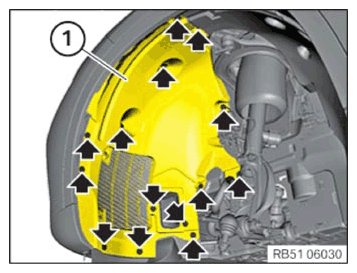

To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Feed out the front section of wheel arch cover (1) and remove.
- Loosen nuts (1).
- Loosen screws (2).
- Release the stationary heating system (1) from the bracket (2).
- Set aside the stationary heating system (1) in arrow direction.
