Installing the trims on the operating facility in the center console

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

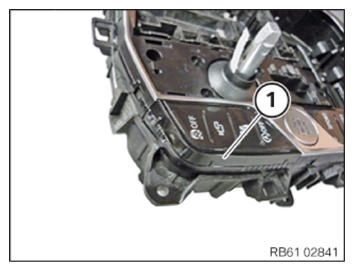

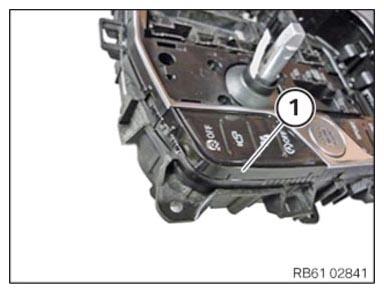

Position trim (1) on the operating facility in the center console (2) and engage.
All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Position trim (1) and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.

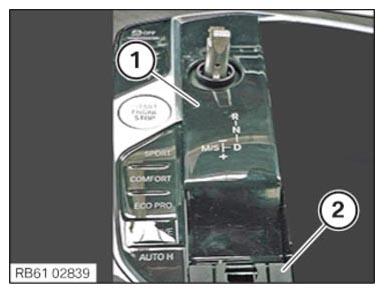

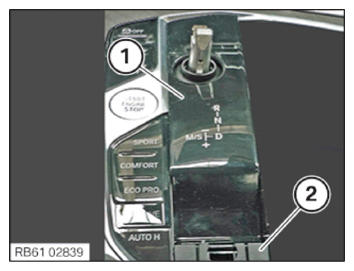

Position trim (1) on the operating facility in the center console (2) and engage it.

All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

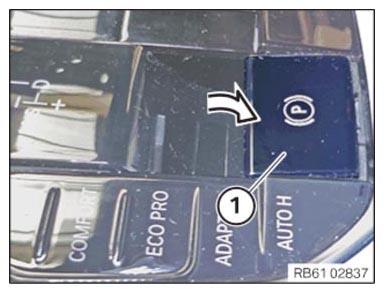

Position the trim (1) for the parking brake button and lock in place in the arrow direction.

The trim of the parking brake button (1) must lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
