Securing left and right spring strut holders on the lower wishbone

NOTE: Perform the steps on the right and left side.

Fasten the spring strut holder on the bottom wishbone

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

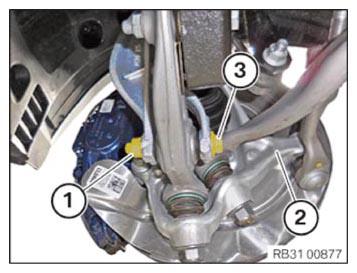

Position spring strut holder on the bottom wishbone.
Replace screw (3) and the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Bolt and nut
Punch in the swivel bearing (2) at the front towards the inner.
Insert screw (3).
Tighten the nut (1) in NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Spring strut holder to lower wishbone
M14 Replace screw and nut. Tighten the screw connection in the normal position!	Joining torque Angle of rotation	165 Nm 90°
