Partially installing the front right wheel arch trim (door sill)

NOTE: Description is for left component only. Procedure on the right side is identical.

Partially installing the front wheel arch trim (door sill)

Only for G05/F95:
Check the clips (2) for damage and replace if necessary.
Check sealing ring for damage, replace if necessary.

The sealing ring must not be damaged or missing.

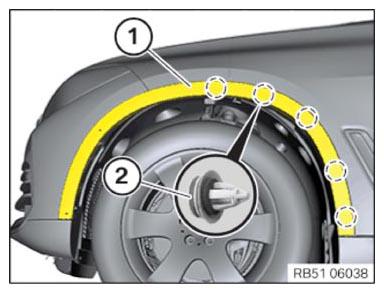

Position the wheel arch trim (1) and engage at the clips (2).
