Install left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.

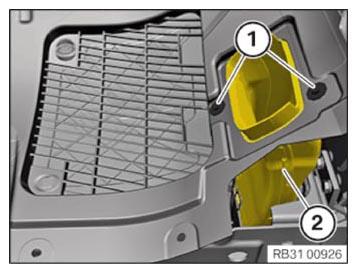

Install the brake ventilation duct
- Insert and position the brake ventilation duct (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
