If installed: Removing the third-row seating

Remove battery cover

• Fold up the luggage compartment floor covering (1).
• Release the expanding rivets (arrows) and remove the battery cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the loading edge trim

• Loosen screws (1).
• Guide out and dismantle loading edge trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the left luggage compartment wheel arch trim panel (with 3rd row of seats)

• Use the special tool 2 298 505 to lever out the covers (1) toward the top and feed out.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the screw (1) and remove the strap fitting.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Remove the cover (2) and release the screw below that.
• Release the luggage compartment wheel arch trim panel (3) upwards on the clips (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.
• Feed out and remove the luggage compartment wheel arch trim panel (2) toward the rear at the trunk lid lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the 3rd seat row

• Loosen screws (1).
• Remove the cover (2) of the side member.

  Courtesy of BMW OF NORTH AMERICA, INC.

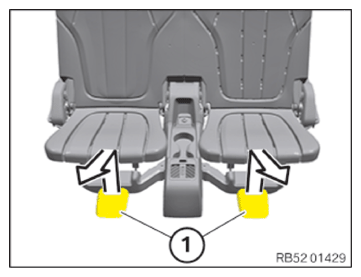

• Remove the seat rail covers (1) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect plug connections (1).

• Unclip the cable clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the third-row seating (2) with the help of a support person.

• Unscrew the bolts (1) and the nut (2).
• Remove holder (3).
• Lift the luggage compartment floor trim (4).

Courtesy of BMW OF NORTH AMERICA, INC.
