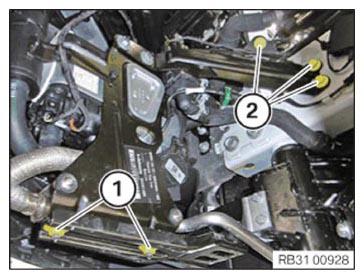

If installed: Fasten the auxiliary heater
- Position the stationary heating system.
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATIONS
Holder to body M8 Tightening torque 19 Nm - Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Stationary heating system to holder | ||
| M8 | Tightening torque | 19 Nm |

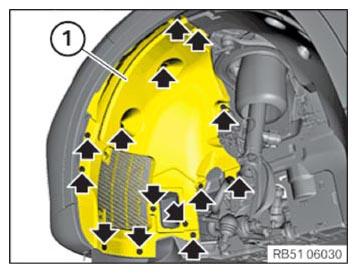

Installing the front section of the front wheel arch cover
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
- Guide in the front section (1) of the wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
