Attaching coolant hoses to front subframe

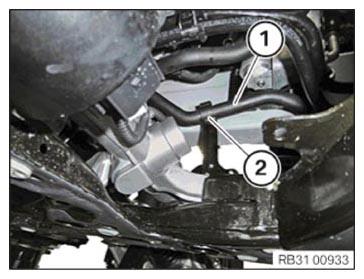

• Secure the coolant hose (1) at the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

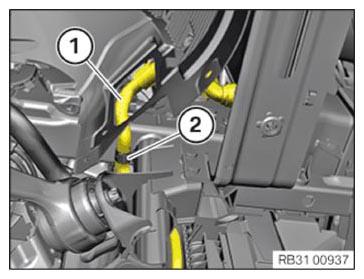

• Fasten the coolant hose (1) to the holders (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

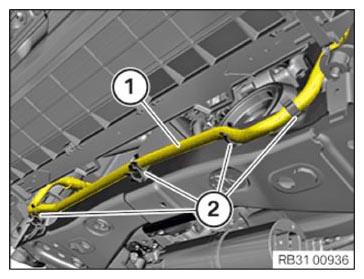

• Fasten the coolant hose (1) onto the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
