Attach the wiring harness of the active stabilizer
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

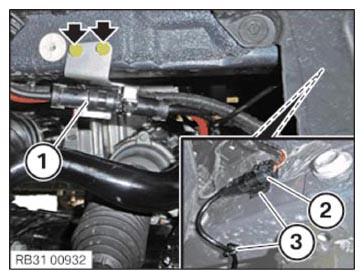

- Secure cable with the holders (3) on the side member.
- Connect connectors (2) and lock.
- Replace the bolts (arrows).
Parts: Screw
- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Connector bracket for active stabilizer to side member M6
Replace screw.Tightening torque 4 Nm - Connect connectors (1) and lock.
