If necessary: Replacing the piston

WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Spring preload .
Injury hazard!

The use of the specified special tool (tool) is mandatory.
Carry out the described steps properly.

Courtesy of BMW OF NORTH AMERICA, INC.

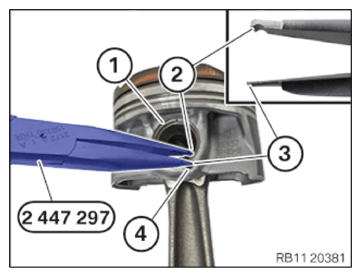

Use the special tool 2 447 297 to remove the piston pin circlip.
Insert the flat side (3) of the special tool in the groove (4) .
Use the curved side (2) to grip and remove the piston pin circlip (1) .

NOTE: TECHNICAL INFORMATION
Piston and piston pin are matched to each other.
Always install piston and piston pin together and do not switch by mistake.

Remove the piston pin (1) in arrow direction.
Remove the piston (2) from the connecting rod (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace piston with gudgeon pin.
Parts: Pistons

NOTE: TECHNICAL INFORMATION
Piston and piston pin are matched to each other.
Always install piston and piston pin together and do not switch by mistake.

Position piston (2) on the connecting rod (3) .
Install the piston pin (1) in arrow direction.
Must be able to install the piston pin (1) without the use of excessive force.
The piston pin (1) must be in the piston and the connecting rod free of play.

Courtesy of BMW OF NORTH AMERICA, INC.
The arrows (1) on the piston and connecting rod bearing cap must point in the driving direction to the timing chain drive (2) for installation in the crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

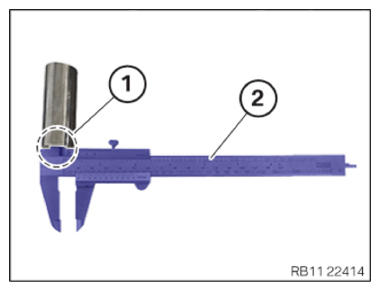

Determine the inner dimension of the piston pin boss (1) with a standard caliper gauge (2) .

Determine a suitable adapter using the following table:

Engine	N63B44T3	N63B44T3
Inner dimension of piston pin boss	10.8 mm to 11.1 mm	10.3 mm to 10.6 mm
Special tool	2450210	2471299 B
Diameter of special tool	Ø 10.75 mm	Ø 10.25 mm
Key range	10 mm	8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Engine	N63B44M3/S63B44T4	N63B44M3/S63B44T4
Inner dimension of piston pin boss	10.8 mm to 11.1 mm	11.3 mm to 11.6 mm
Special tool	2450210	2471299 A
Diameter of special tool	Ø 10.75 mm	Ø 11.25 mm
Key range	10 mm	10 mm

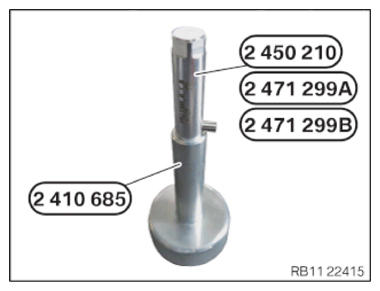

Prepare special tool 2 450 210 /2471299 A/2471299 B on the installation aid 2 410 685 .

Courtesy of BMW OF NORTH AMERICA, INC.

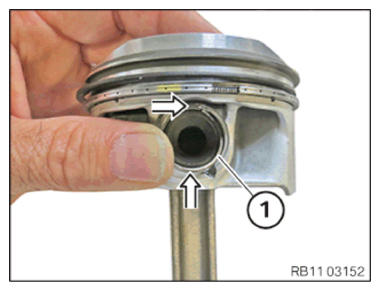

Insert the piston pin circlip (1) in the groove on the piston (see arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

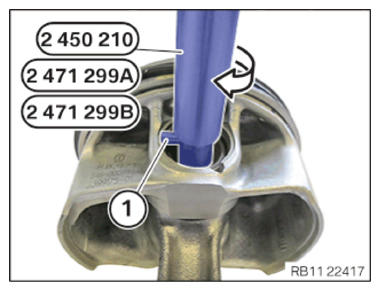

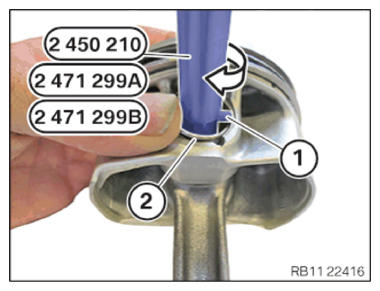

Screw in the positioned piston pin circlip (2) with 2 410 685 and 2 450 210 / 2471299 A/2471299 B with the guide pin (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw the piston pin circlip with the guide pin (1) into the groove of the piston in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

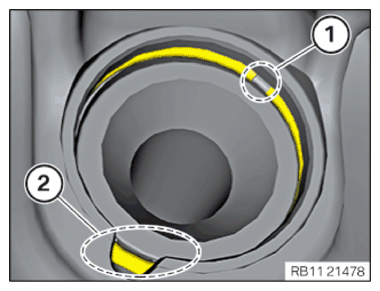

The piston pin circlip must fit correctly in the groove.
The opening (1) on the piston pin circlip must be against the recess on the piston.

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary: Remounting piston rings

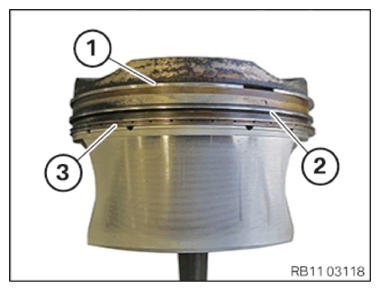

Check the arrangement of the piston rings.
Piston ring (1.)

Piston ring (2) .

Oil scraper ring (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove upper and middle piston ring (1) with a piston ring pliers (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

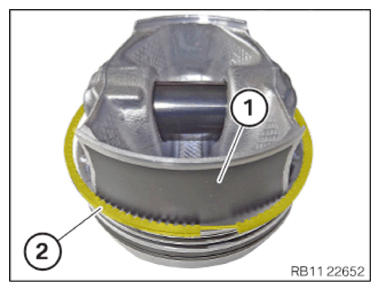

Remove oil scraper ring (2) (U-Flex) by hand over the piston skirt (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

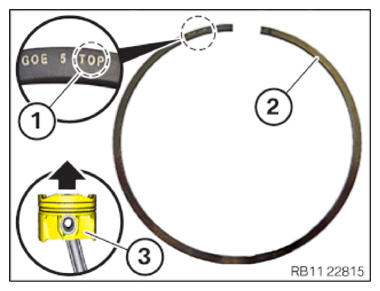

The TOPPING mark (1) on the piston rings (2) must be installed at the piston roof of the piston (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install oil scraper ring (2) (U-Flex) by hand over the piston skirt (1) Install.

Courtesy of BMW OF NORTH AMERICA, INC.
Install upper and middle piston ring (1) with a piston ring pliers (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
