Removing the screw plug at the cylinder head
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
A hardening time of 24 h must be observed after wetting the screw with the screw locking agent.
During the hardening time, the engine must not be started.
Filling the coolant circuit is only permitted after the hardening time.
A hardening time of 24 h must be observed after wetting the screw with the screw locking agent.
During the hardening time, the engine must not be started.
Filling the coolant circuit is only permitted after the hardening time.
NOTE:
TECHNICAL INFORMATION
The repair solution differs depending on the installed screw plug (different thread pitches).
The repair solution differs depending on the installed screw plug (different thread pitches).
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
- Refer to REMOVING CLEAN AIR PIPE AND RESONATOR .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE RIGHT REAR TORSION STRUT WHERE REQUIRED .
- Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING CATALYTIC CONVERTER .
- Refer to REMOVING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
- Refer to REMOVING FAN COWL .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINE TO THE HIGH-TEMPERATURE COOLANT RADIATOR .
- Refer to REMOVING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
- Refer to REMOVING EXHAUST TURBOCHARGER .
Screw plug on cylinder head
NOTE:
TECHNICAL INFORMATION
The repair solution differs depending on the installed screw plug (different thread pitches).
The repair solution differs depending on the installed screw plug (different thread pitches).

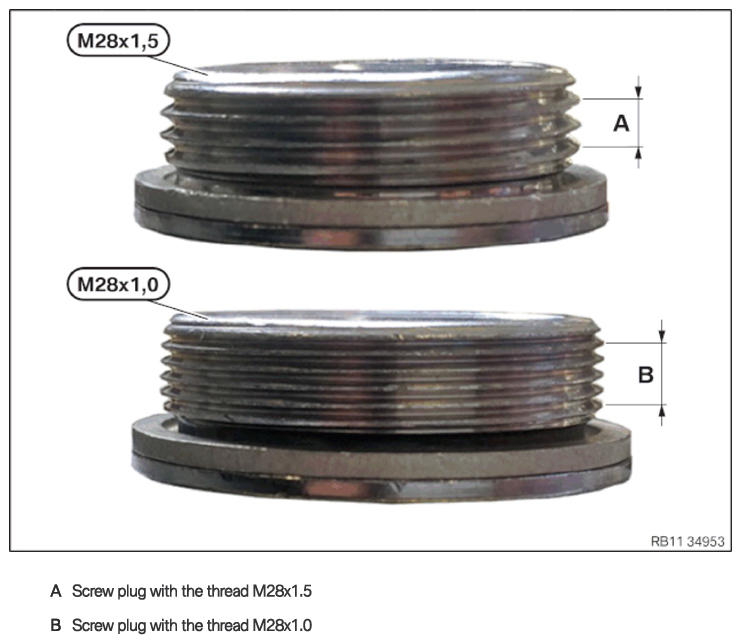

- Prepare the commercially available thread arrows (1) .
Check
- Check the thread pitch (B) with the thread arrows.
Result
» Thread pitch = 1.0
Measure
- Replace cylinder head.
Check
- Check the thread pitch (A) with the thread arrows.
Result
» Thread pitch = 1.5
Measure
- Carry out the next step.
- Release the screw plugs (1) .
- Guide out and remove the screw plugs (1) .
