Remove windshield washer pump
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
- Refer to REMOVING THE WHEEL .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVE WASHER FLUID RESERVOIR .

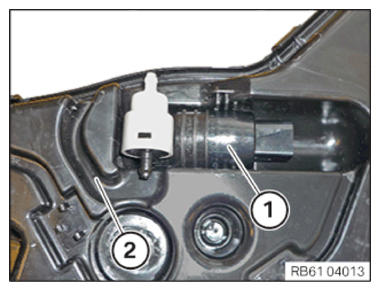

- Pull windshield washer pump (1) out of washer fluid reservoir (2).

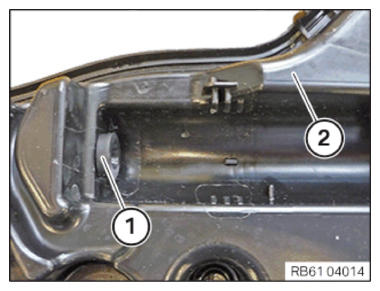

- Pull strainer with gasket (1) out of the washer fluid reservoir (2).
