Adjust spray nozzle
Prerequisite
- Engine compartment lid is open.
NOTE:
TECHNICAL INFORMATION
The spray nozzles of the washer system are preset .
If owing to a customer complaint the setting is to be changed, the typical driving situation (high/low speed; with/without additives) must be taken into consideration. Consider any changes carefully.
The spray nozzles of the washer system are preset .
If owing to a customer complaint the setting is to be changed, the typical driving situation (high/low speed; with/without additives) must be taken into consideration. Consider any changes carefully.

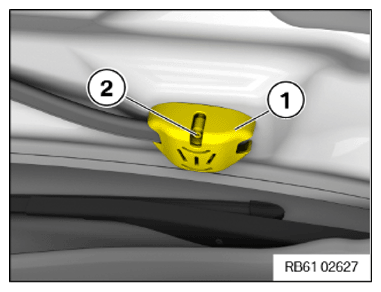

- If the spray nozzles need to be adjusted: Adjust spray nozzle (1) by turning the screw (2).
