Installing spray nozzle for the Night Vision camera

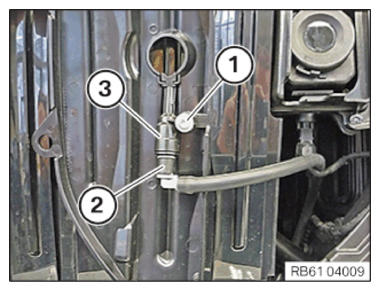

• Correctly position the spray nozzle for the Night Vision camera (3) and tighten the screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Spray nozzle on cover
  Screw	tightening torque	2.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect high pressure line (2).
• Correctly position cover (1) and tighten screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
