Remove wiper console

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVE LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING THE COWL COVER .

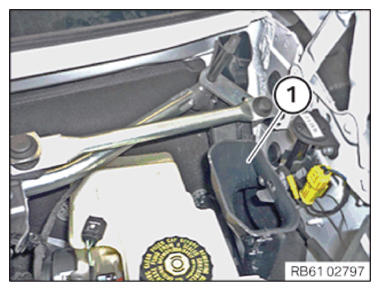

• Remove the water drain channel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

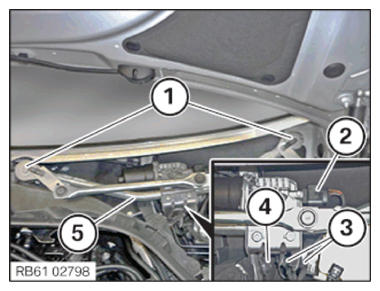

• Loosen nuts (1).
• Remove the wiper console (5) from the guide (4).
• Unlock plug connection (2) and disconnect.
• Unclip the cable clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.
