Remove the control unit for the power tailgate
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .

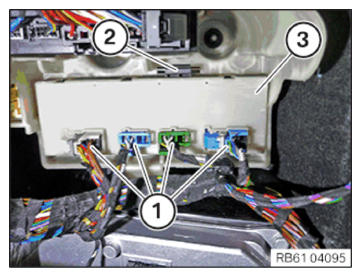

- Unlock and disconnect plug connections (1).
- Unlock the detent (2) and remove the control unit for the power tailgate (3).
