General Electrical System - Repair -- X5 (2 Of 2) (G05)
>>
61 35 Control Units, Modules
>>
61 35 205 Removing and installing roller cover for luggage compartment control unit/module (all X5 models, 2019-2022)
>>
Installing the control unit for the roller cover for luggage compartment
Installing the control unit for the roller cover for luggage compartment

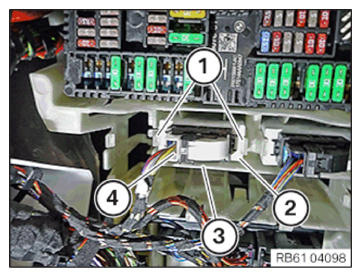

Position the control unit for the roller cover for luggage compartment (2) and insert it into the holder (3).
Detents (1) must lock correctly.
Connect connectors (4) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT
.
