61 35 204 Removing and installing anti-slip rails control unit/module (all X5 models, 2019-2022)
>>
Installing control unit for the automated slide & anti-slip rail
Installing control unit for the automated slide & anti-slip rail

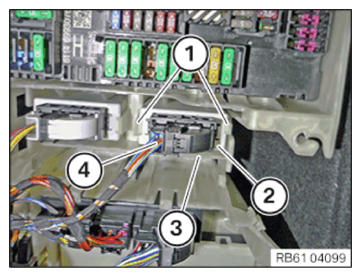

Position the control unit for automated slide & anti-slip rail (2) and install it in holder (3).
Detents (1) must lock correctly.
Connect connectors (4) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT
.
