Removing 12 V power socket (rear center console)
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
- Turn the head of the special tool 0 496 588 (61 0 250) (1) to the left until both marks are facing.
- Carefully insert the special tool (1) into the 12 V power socket (3).
- If applicable, carefully turn the special tool (1) towards the left until the recesses (2) of the special tool are engaged with the contacts (4) of the 12 V power socket (3).
- Turn the head of the special tool (1) towards the right until the special tool locks in the 12 V power socket (3).

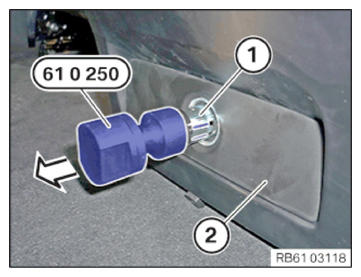

- Remove the 12 V power socket (1) from the center console trim (2) in arrow direction using the special tool 0 496 588 (61 0 250).
- Unlock and disconnect connector.
