General Electrical System - Repair -- X5 (2 Of 2) (G05)
>>
61 31 Switch, Sensor
>>
61 31 122 Removing and installing/replacing tow hitch switch (all X5 models, 2019-2022)
>>
Installing the switch for the automatic trailer tow hitch
Installing the switch for the automatic trailer tow hitch

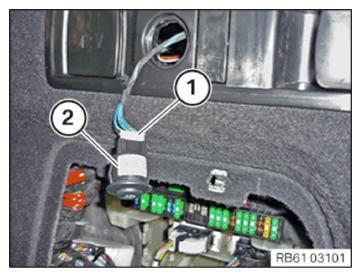

Connect the connector (1) with the switch (2).
Courtesy of BMW OF NORTH AMERICA, INC.

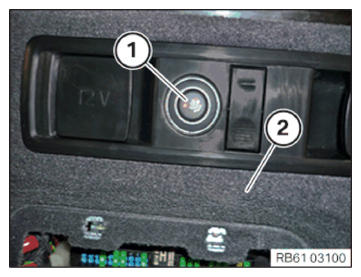

Clip the switch (1) into the trim panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT
.
Courtesy of BMW OF NORTH AMERICA, INC.
