Installing right power window switch

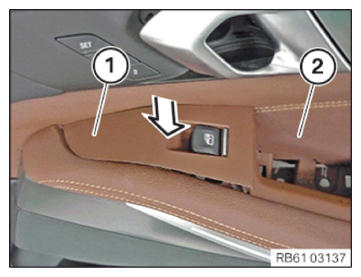

• Correctly position the power window switch with switch trim (1) and install in the door trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

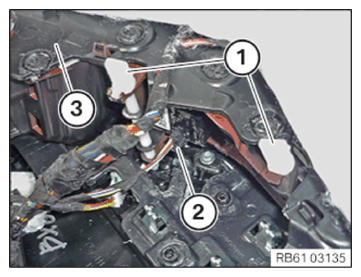

• Install the locking pins (1) in the door trim panel (3) and lock.
• Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING MIRROR TRIANGLE COVER .
