61 31 Switch, Sensor
>>
61 31 117 Removing and installing/replacing power window switch on driver's side (all X5 models, 2019-2022)
>>
When replacing the left power window switch: remounting switch trim
When replacing the left power window switch: remounting switch trim

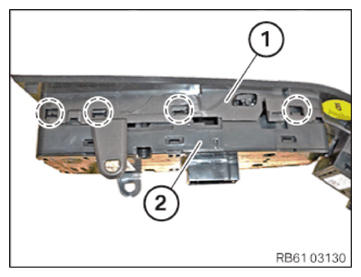

Unlock the switch trim (1) at the marked points on both sides.
Remove switch trim (1) from power window switch (2).
Replace the power window switch (2).
Parts:
Power window switch
Position the power window switch (2) (1) at the switch trim and clip it in.
Courtesy of BMW OF NORTH AMERICA, INC.
