Remove the trunk lid lock switch
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE MIRROR TRIANGLE COVER .
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to REMOVING THE LEFT POWER WINDOW SWITCH .

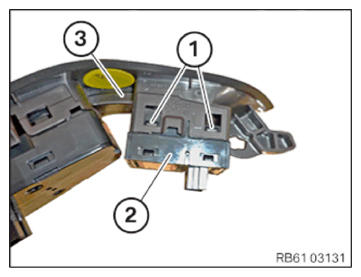

- Unlock detents (1) on both sides.
- Remove the trunk lid lock switch (2) from the trim (3).
