Remove the central locking switch
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE MIRROR TRIANGLE COVER .
- Refer to REMOVING FRONT DOOR TRIM PANEL .

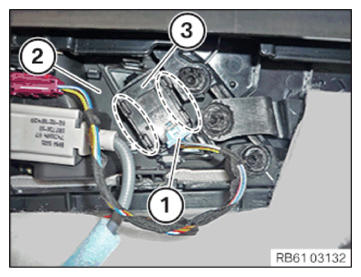

- Disconnect the connector (1).
- Release the detents in the marked area on the decorative trim (2).
- Remove central locking button (3).
